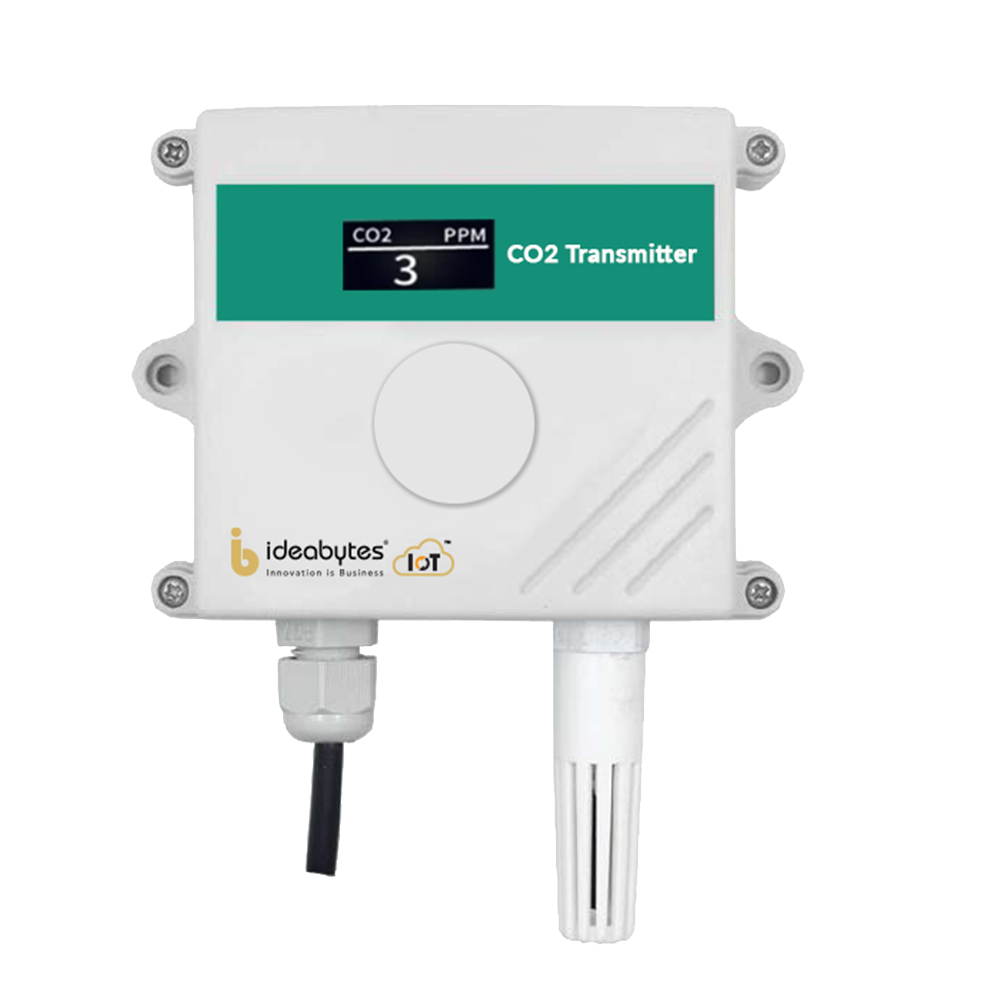

Co2 Transmitter

Co2 Transmitter (carbon dioxide transmitter) is used to measure and monitor the concentration of carbon dioxide (CO2) gas in the surrounding environment. These transmitters are commonly used in various applications, including indoor air quality monitoring, HVAC (heating, ventilation, and air conditioning) systems, industrial processes, and research settings

Project Image


Device Type Integrated CO2 Temperature & Humidity Transmitter
Model Number IBI-ACT
Power consumption 0.3W (24VDC)
Power supply 10~30V DC (Average current <85mA)
CO2 measurement range 0 ~ 5000ppm (default) Optional: 0 ~ 2000ppm 0 ~ 10000ppm
Accuracy 0 ~ 5000 ppm : ±(50ppm +3% F•S() 25℃) 0 ~10000 ppm : ±(50ppm +5% F•S() 25℃)
High Accuracy 0 ~ 5000 ppm : ±(45ppm +3% F•S() 25℃) 0 ~10000 ppm : ±(45ppm +5% F•S() 25℃)
System warm-up time 2min(available), 10min(maximum accuracy)
Response time Typically less than 90s at 90% step change
Stability <2%F-S
Non-linearity <1%F-S
Resolution 1 ppm
Temperature Measurement Range -40℃~+80℃
Accuracy ±0.5°C (25°C)
Resolution 0.1°C
Humidity Measurement Range 0~100%RH
Accuracy ±3%RH (60%RH,25°C)
Resolution 0.1%RH
Operating Environment -20°C~+60°C, 0%RH~95%RH Non-condensing
Data update time 2s
