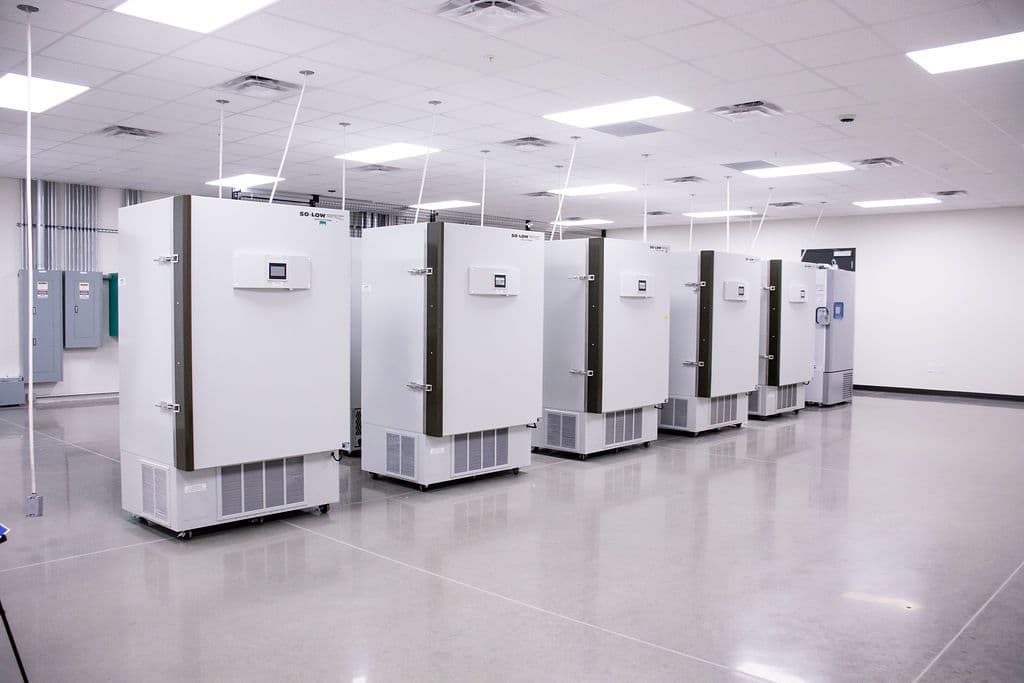

Stability Chamber Monitoring: Continuous ICH Q1A Validation

Stability Chamber Monitoring: Why Continuous Validation Beats the Clipboard

Pharmaceutical stability studies sit at the heart of every shelf-life claim, every regulatory submission, and every recall investigation. Yet many laboratories still rely on a hybrid of circular chart recorders and twice-daily manual log sheets to evidence that an ICH Q1A chamber held its set point. A stability chamber monitoring system built on continuous electronic logging is no longer a luxury — it is the only practical way to meet the tolerance, audit-trail, and mean kinetic temperature (MKT) expectations that modern inspectors apply.

The ICH Q1A(R2) Conditions You Must Defend

ICH Q1A(R2) defines the stability storage matrix that products must be evidenced against during registration. The guideline addresses Climatic Zones I and II directly; Zones III and IVa/IVb are covered by WHO guidance after ICH Q1F was withdrawn in June 2006. The R2 revision specifically raised the intermediate condition humidity from 60% to 65% RH, a change every chamber set-up sheet should reflect.

EMA's Step 5 adoption of ICH Q1A(R2) confirms the same tolerances for European submissions. The narrow ± 2°C band is unforgiving: a single hour outside specification, undetected, can compromise an entire stability batch and force a re-start of months of expensive degradation testing.

Why Manual Logging and Chart Recorders Now Fail Audit

Paper-based stability records are fundamentally incompatible with modern good documentation practice. PIC/S PI 041-1 Good Practices for Data Management requires records to be "enduring (indelible)" and explicitly notes that thermal-paper traces fade and therefore demand verified true copies for retention. Circular charts also capture only a trace — there is no per-channel granularity, no metadata layer, no excursion alarm, and no way to compute MKT after the fact.

The FDA Warning Letter to Grace Analytical Lab (586510, November 2019) crystallised the regulator's position: investigators cited missing stability chamber data linked to a malfunctioning sensor that went unalarmed and uninvestigated, alongside inadequate computerised-system controls. The lesson is direct — if your sensor can fail silently and your record can be re-traced or lost to fade, you do not have a defensible stability record.

Manual log sheets compound the problem. A technician's 9 AM. and 5 PM. observations leave a 16-hour blind spot overnight, exactly when chiller compressors cycle and HVAC schedules change. A continuous 21 CFR Part 11 compliant temperature logger closes that gap, timestamps every reading, and writes the audit trail automatically.

Mean Kinetic Temperature Demands High-Resolution Data

USP General Chapter <1079.2> defines mean kinetic temperature as the single calculated virtual temperature that produces the same total degradation as a product's actual time-temperature history. The Haynes (1971) Arrhenius-based formula assumes a continuous record; long averaging windows or sparse manual readings dilute the impact of short, hot excursions and understate true risk to product quality.

Practically, this means your stability chamber monitoring system must log at sub-hourly resolution for every storage residency period, retain the raw points (not just averages), and present MKT alongside min/max/excursion counts in any quality report. That is engineering work no clipboard can do.

Sensor Class Matters: Why Class A PT100 is the Defensible Floor

Per IEC/DIN EN 60751:2022, PT100 platinum RTDs are graded by tolerance class. Class A is specified at ± (0.15 + 0.002·|t|) °C, giving ± 0.15 °C at 0 °C and ± 0.35 °C at 100 °C. Class AA tightens this further to ± 0.1 °C at 0 °C, while Class B (± 0.3 °C at 0 °C) rapidly degrades at higher set points. With ICH Q1A allowing only a ± 2 °C envelope, sensor uncertainty must be an order of magnitude tighter than the tolerance — Class A is the practical minimum, and Class AA is preferred for cold-chain (5 °C) and accelerated chambers.

NTC thermistors, common in low-cost wireless loggers, drift with age and lack the long-term stability and channel-to-channel interchangeability of platinum RTDs. For ICH chambers, USP <1079.3> (and superseded <1118>) requires traceable calibration to NIST or equivalent — another reason platinum RTDs win.

Mapping Ideabytes Hardware to Real Chamber Topologies

Stability suites rarely look identical. A walk-in 25 °C/60% RH room, a reach-in accelerated cabinet, and a Q1B photostability box all have different probe-count and connectivity needs. Ideabytes addresses each with a purpose-built PT100 multi-channel data logger:

• IBI-MTR8 — 4G M2M 8-Channel PT100 Data Logger. An eight-channel platinum RTD logger covering -200 °C to +550 °C at 0.5 °C (0.05% of full scale) accuracy, with a 2.4" 128×64 OLED display and embedded 4G LTE CAT1 with in-built M2M SIM. Ideal for walk-in chambers where you must map shelf-by-shelf gradients without depending on facility Wi-Fi. Eight channels let you site probes at corners, centre, return air, and product surface for a full thermal map.

• IBI-WTR4 — Wi-Fi 4-Channel PT100 Data Logger. A four-channel PT100/PT1000 logger using Wi-Fi 802.11 b/g/n 2.4 GHz with the same 0.5 °C (0.05% FS) accuracy and OLED display. The right fit for reach-in ICH cabinets and benchtop accelerated chambers where the validated qualification protocol calls for four probes (top, middle, bottom, return) and the laboratory has a stable corporate Wi-Fi.

• IBI-WC-X — Wi-Fi Customised Room Parameter Data Logger. A Wi-Fi 802.11 b/g/n 2.4 GHz multi-parameter platform where sensor heads are procured to suit the application. For ICH Q1B photostability chambers it can be configured with combined T/RH plus visible lux and near-UV irradiance sensors so a single device documents the not-less-than 1.2 million lux-hours visible and not-less-than 200 W·h/m² near-UV exposure required by the guideline.

All three devices ship under a common compliance posture — FDA 21 CFR Part 11, CE, FCC, and IC — and operate from -40 °C to +85 °C, well outside the chamber set points they monitor.

Architecting a Validated Stability Chamber Monitoring System

Continuous validation is not just hardware. A defensible architecture combines the right probes, the right transport, and the right backend:

1. Probe placement per qualification protocol. URS-driven OQ/PQ studies typically demand 9 to 15 probes for a walk-in and 4 for a reach-in. Use IBI-MTR8 to cover walk-in maps in pairs (16 probes from two devices) and IBI-WTR4 for cabinets.

2. Resilient connectivity. 4G is non-negotiable for walk-ins inside Faraday-like cold-room shells; Wi-Fi works for reach-ins under stable IT control. Choose per chamber, not per fleet.

3. One-minute sample interval. Sub-hourly sampling is the floor for meaningful MKT; one-minute sampling gives you 1,440 points per probe per day and lets short transients show up before they mature into excursions.

4. Server-side audit trail. Every reading, every alarm acknowledgement, every calibration entry should be written with a tamper-evident timestamp and bound to a 21 CFR Part 11 e-signature workflow.

5. Calibration management. Schedule annual re-calibration against NIST-traceable references and maintain certificates inside the same QMS that holds your stability protocols.

Compliance Checklist for Chart-Recorder Replacement

If you are running a chart recorder replacement pharmaceutical stability project, walk through this checklist before retiring the legacy device:

• Class A or AA PT100 probes with NIST-traceable calibration certificates on file.

• Continuous logging at one-minute or finer resolution for every channel.

• Automated MKT calculation per residency period with min, max, and excursion counts.

• Tamper-evident audit trail with operator-attributable e-signatures (21 CFR Part 11 § 11.10).

• Multi-tier alarms — local OLED, SMS, email, and platform notifications — with documented escalation.

• Independent sensor health monitoring so a failed probe alarms rather than silently flat-lines.

• Retention policy matching submission requirements (typically batch life plus one year, longer for biologics).

• Aligned to PIC/S PI 041-1 expectations for enduring, attributable, contemporaneous, original, accurate (ALCOA+) records.

Photostability and the Adjacent Q1B Use Case

ICH Q1B confirmatory photostability testing is the natural neighbour to Q1A studies. Because the IBI-WC-X accepts custom sensor configurations over Wi-Fi, the same backend that documents your 25 °C/60% RH long-term cabinet can record the lux-hours and W·h/m² exposures inside your photostability box — with the same audit trail, the same e-signature controls, and the same operator interface.

Conclusion: Continuous, Auditable, MKT-Ready

Stability programmes are evidence factories. The strength of every shelf-life claim depends on whether you can hand an inspector continuous, attributable data showing the chamber held within ICH Q1A tolerances. Manual logs and chart traces no longer pass that test under PIC/S PI 041-1 or 21 CFR Part 11 scrutiny, and they cannot deliver the high-resolution time series MKT calculations require. Class A PT100 multi-channel loggers — IBI-MTR8 over 4G for walk-ins, IBI-WTR4 over Wi-Fi for reach-ins, and IBI-WC-X for Q1B photostability — give quality teams a single, validated stack to retire the clipboard and pass the audit.
